Eclipse X9

Tested
Validated
Recyclable

Launching Soon

Details

Eclipse X9 is a basalt-reinforced recycled PETG composite engineered for Large-Format Additive Manufacturing and traditional filament printing.

Validated by the University of Maine's Advanced Structures and Composites Center and proven across 24–26 months of saltwater immersion, Eclipse X9 is the structural material for defense, marine, and industrial additive manufacturing at scale.

Performance

Tensile Strength — 108.2 MPa

Bending Strength —112.98 MPa

Bending Modulus — 8.70 GPa

Water Absorption — <0.4%

Heat Deflection — >70°C

Recyclability — Closed-loop

Saltwater Exposure — >90% strength retention (UMaine), 24-26 months tested

Formats

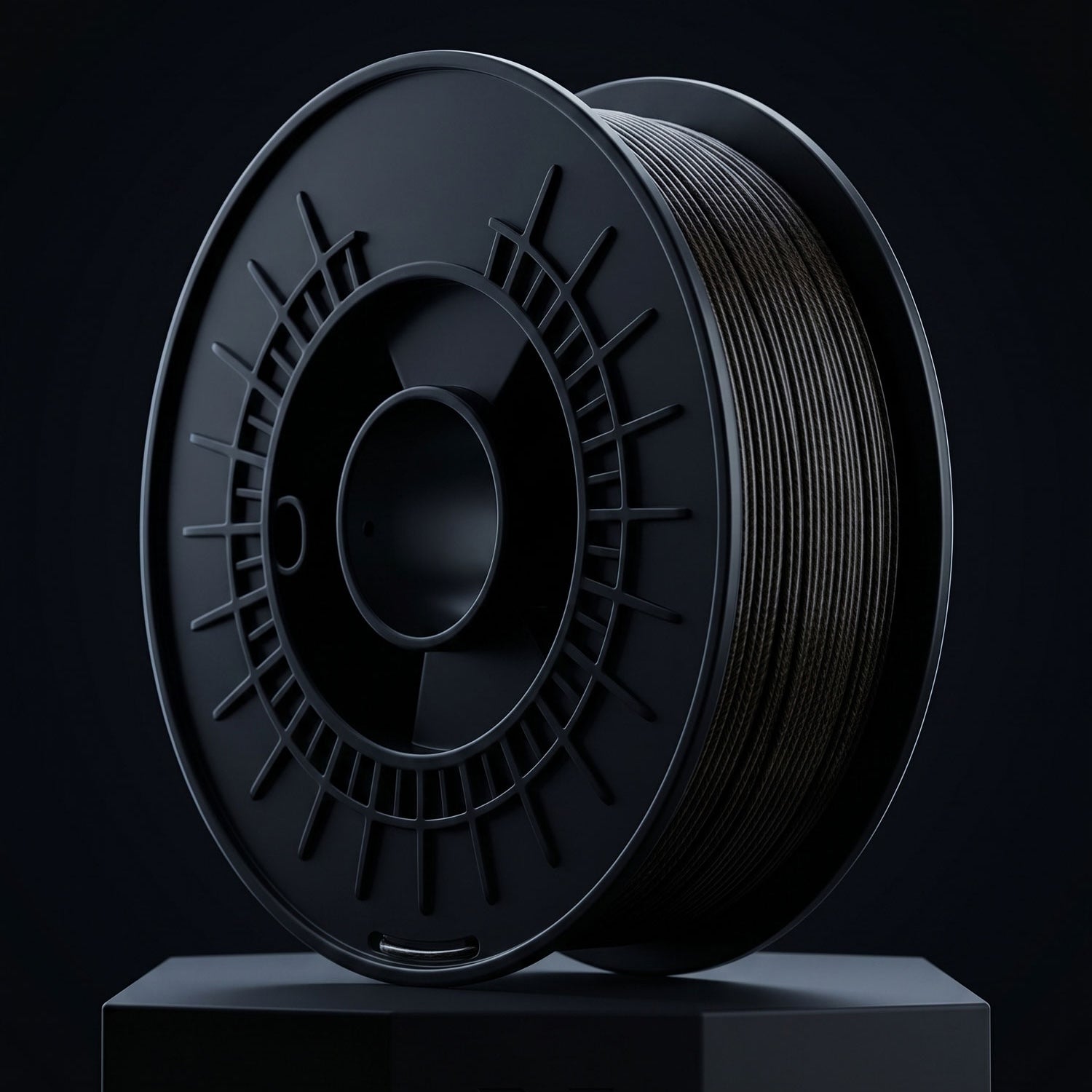

Filament — 1.75mm and 2.85mm, compatible with desktop to large-format FFF printers including the Elegoo OrangeStorm Giga class.

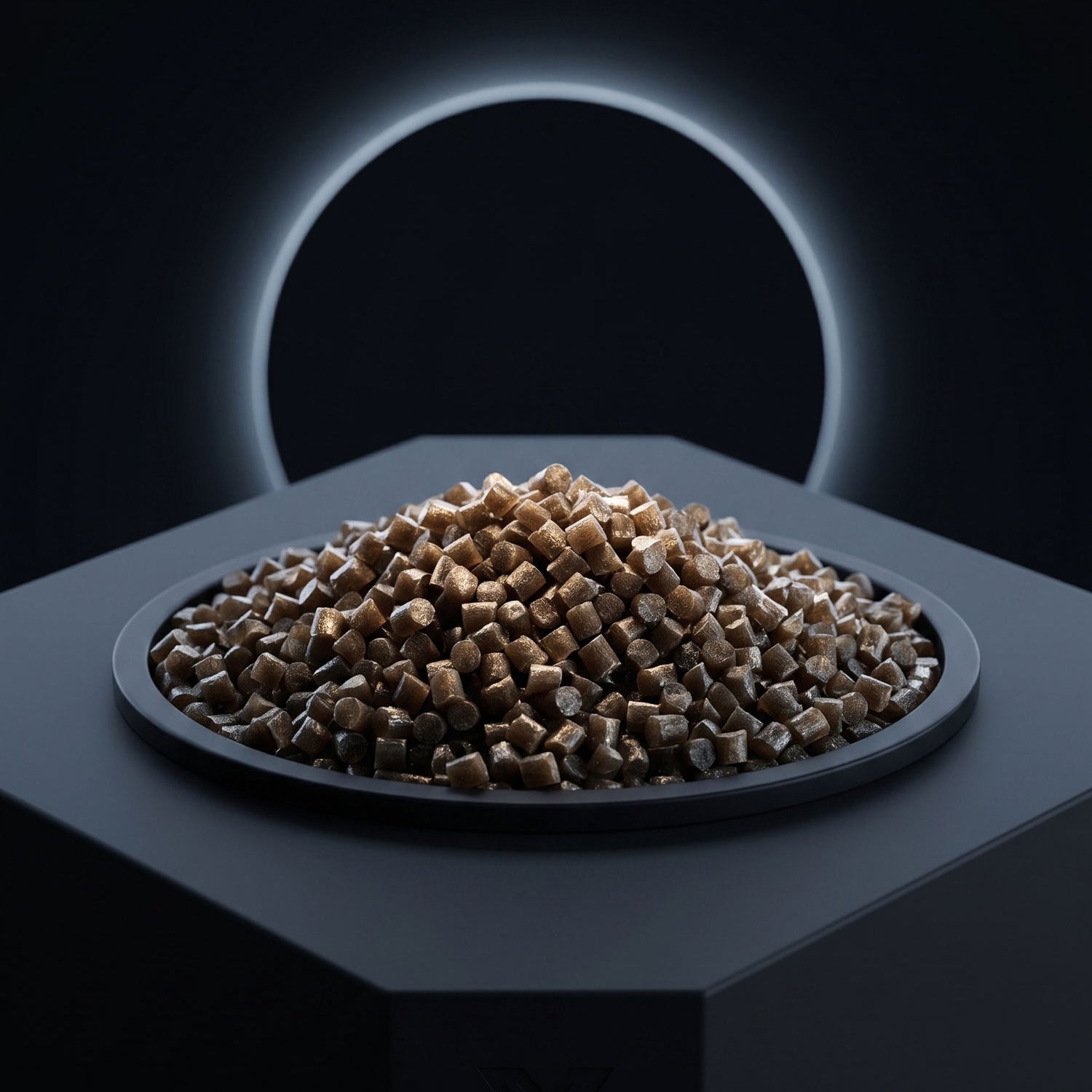

Pellets — LFAM-grade, CEAD-class and JuggerBot-class systems, bulk supply for contract manufacturing.

Custom — compounding available for OEM and defense qualification programs.

Why Eclipse X9?

Eclipse X9 is a reinforced composite material engineered for structural additive manufacturing in real-world environments. It is built to outperform conventional polymers where durability, environmental resistance, and scale matter.

Next Generation Composite

Engineered composite, not commodity plastic.

Made with Purpose

Designed for structural use, not cosmetic parts.

A Materials Platform

Optimized for large format additive manufacturing.

Built to Last

Built for marine and harsh environments.

Ready to Scale

Developed for repeatable production, not one-off prints.

Tested & Validated

Mechanical Performance

Every claim is backed by data. We never say stronger without the number.

108.2 MPa

Tensile Strength

112.98 MPa

Bending Strength

12 GPa

Bending Modulus

<0.4%

Water Absorption

24–26 months tested

Saltwater Exposure

>70°C

Heat Deflection

Closed-Loop

Recyclability

Request Technical Data

Filament

For desktop and mid-scale additive systems. Ideal for prototyping, validation, and integration testing.

Request Bulk Pricing
